Week 5: Materials and Fasteners

Overview

In this class we will discuss a variety of commonly used fasteners and material options.



“Screws not Glues”

But if you must use glues – Adhesive Chart and this to that

Various screws and bolts



Show and Tell

We’ll review and discuss last week’s assignment.  What processes/techniques/tools did we use?  Any tips?  What would we change if we could do it all over again?



Tool(s) of the Week

Tap and die set

Tap and Die set, cuts screw threads into metal, plastic, and wood.

US Tap and Drill Bit Size Table

List of Drill and Tap Sizes (wikipedia)



Rivet gun and pop rivets

Rivet Gun, installs semi-permanent rivet fasteners in sheet material.

Pop rivet diagram

Rivet How To



Tip of the Week

What’s the name of that thing that does that thing?

It’s hard to Google something when you don’t know what it’s called.  Look through physical paper catalogs of parts and tool suppliers to find parts you don’t know the names of.  See McMaster Carr, Rockler, Woodcraft.



Fasteners

There are so many different types out there, we could honestly spend 7 weeks covering nothing but fasteners.  It would be boring, but we could do it.  We will stick to the basics.



Nails

Nails

Finishing nails, roofing nails, cut nails, tacks, penny nails, brads, hammered antique decorative nails.  Nails come in a variety of shapes and sizes.  They also aren’t often used here at ITP.  Nails are typically used for attaching wood to wood and require a hammer.  The trick is to use the correct nail for the job.



Screws

All screws require a tool to fasten them.  Typically, a screwdriver (usually a flat head or Phillips) or Allen wrench is required.

Flat head screwdriver
Flat Head

Flat head screw icon

Short Philips screwdriver
Phillips Screwdriver

Philips screwdriver icon



Allen Wrenches
Allen Wrenches

Allen wrench icons

Driver set
Driver Set



Wood Screws

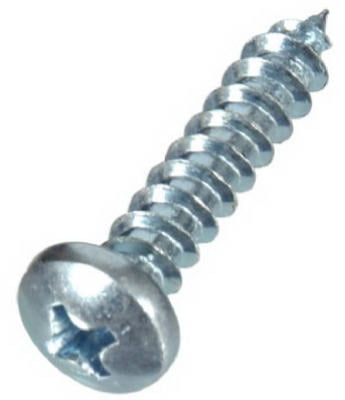

Countersink wood screwsPan head wood screws

Typically, wood screws come in counter sink (remember the counter sink drill bit from Week 1?) or pan head styles.  They are generally used to attach wood to wood.



Sheet Metal Screws

Sheet metal screws

Sheet metal screws have a course thread and are ideal for attaching sheet metal to sheet metal.



Machine Screws

Machine screws

Machine screws have a variety of head types and have fine threading.  They are typically used to fasten enclosures, mechanical parts, and precision devices.



Set Screws

Set screws

Shaft collar with set screw

Set Screws are headless and typically require an allen wrench.  They are often small and used to secure collars on shafts and axles.

Explaining Set Screws



Pocket Screws

Pocket screws with wood

Pocket Screws require a Pocket Screw Jig to be used correctly (remember from Week 2).  Typically, used to make quick, strong joints with wood.



Rivets

Pop rivets

How pop rivets work

Rivets require a rivet gun and are a somewhat more permanent fastener.  Commonly used to attach sheet material to sheet material.  The rivet is placed in a hole and the gun is used to squash it in place.



Dowel Pins

Dowel pins and wood

When used with a doweling jig (remember week 2) and wood glue dowel pins make great connectors for wood to wood joints.



Threaded Inserts

Threaded insert and screw

Threaded Inserts are inserted into material and have internal threads to accept screws.  They easy, fast, and reliable.  And like the image says, they can be used in metal, plastic, and wood.



Zip ties

Zip ties

In a pinch, zip ties can make great fasteners.



Velcro

Velcro with adhesive back

Velcro is great for mounting batteries/battery packs and hold paper/cardboard enclosures together.



Washers, nuts, etc.

Nut and washers

Don’t forget that you will often need washers and nuts when using screws.  And just like fasteners, they come in all shapes and sizes.

Various types of nuts

Various types of washers



Decorative Hardware

Construct Me! Hardware Collection

Large headed screws

“Our screws, hinges, nuts, nails, brackets and other hardware add value, character and a richer narrative. In our created collection, you will find nails that reduce the risk of hitting your finger, two way tie wraps, fancy hinges and screws that smile at you.”

Emoji Screws

Stainless Steel Cap Cover Decorative Mirror Screws

Screws with decorative caps



Knurled Thumb Screws

Knurled brass screw



Titanium Fastners

Various titanium screws



Silver Cone Spikes Screwback Studs

Spikes with screw backs

Spikes attached to sneakers

Bronze Bullet Rivet /Cone Rivet / Spike/Screw Studs

Bronze spikes with screw backs



Materials

Acrylic and plywood are very popular materials at ITP, due to the fact that they are reliable when laser cut or CNC’d.  But there is a world of other materials out there.  The following is just a small sampling.



Sheet Metal

Various types of sheet metal

Aluminum, copper, brass, steel, etc.  Comes in all sizes and materials.



Natural Wood

Various wood types

Wood comes in a variety of sizes, shapes, and species.



Cardboard

Pieces of cardboard



Foamcore

Sheets of foamcore

Cheap and easy to cut by hand with a blade.  Great for models and quick mockups.  You can cut halfway through to create angles and hinges.



Aluminum Stock

Various pieces of aluminum

Blocks, rods, tubes, strips, and channels.  Aluminum is a soft easy to machine metal.



Machinable Plastic

Various pieces of machinable plastic

Typically, works like wood (watch out for melting though).  Comes in an array of colors and sizes.



Delrin

Various sheets of Delrin

Also known as acetal, delrin can be cut in the laser, similar settings to acrylic.  It is very stiff and has low friction, great for mechanisms.



High Density Foam

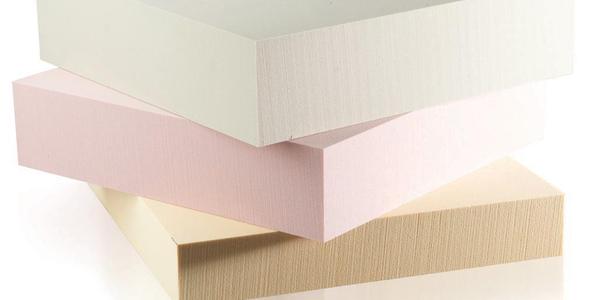

Sheets of machinable foam



Cork

Blocks of cork



Wood Veneer

Sheet of wood veneer

Thin sheets of wood.  Lighter species are actually translucent.  Easy to tear and subject to warping.  Laser cut very well.



Corian

Corian tiles

Machines very well, comes in an array of colors, and Corian can be glues to itself without leaving a visible seam.  It is an expensive material.



Two Material Projects

Below are a few examples of projects using primarily two different materials.



Wood and rope swing

Hex Tree Swing



Walnut and aluminum bowl

Connected Change Dish



Ceramic and brass bowl

Selma Durand’s Piggy Bank

Cement and wood toy trucks

Petite Rouleau Compresseur



Wood and metal mail organizer

Alps Organiser



Corian and plyboo vase

Corian and Bamboo Test Tube Vase



Cork and steel stools

Tables BASIL



Cork and wood toys

Animal Box – Jungle



Wood and plastic objects

Paperfoxtrot Buoys



Cement and acrylic light

Tactile Equations



Paper and brass light

Perch Light



In Class Demo

Demo of metal cutting miter saw and scroll saw.



Assignment

Fabricate something using primarily two different materials.  Let’s say the project is roughly 40% one material, 40% the other.  The materials cannot be acrylic or plywood (unless you are gluing up your own plywood).  The work should be held together using fasteners of your choosing.



Field Trip

Go to Metalliferous, a metal and metal tool supply house on 34 West 46th St.



What you Should Try

Try experimenting and working with a material(s) that is new to you.  Pop rivets into sheet metal, tap threads into plastic, or machine and shape aluminum.



What You Should Buy

Buy extra material and fasteners.  If you fabricate, you will always need more down the line.
